What Is a Cold Chain?
Cold chain logistics involves the transportation and supply of perishable and or temperature-sensitive products such as pharmaceuticals, biological products, food, and beverages. Such products are maintained and supplied in acutely monitored conditions to ensure that the quality and safety of the product is maintained. The reason for doing this comes down to the core function of protecting such perishable products from being damaged directly or indirectly due to severe heat or other weather conditions.
What is Cold Chain Temperature Monitoring Device & How Does it Work?
Cold chain monitoring can be defined as the process of using the Internet of Things (IoT) to actively/passively track, monitor and record the temperature of the cold chain shipment, enabling continuous remote temperature monitoring of goods.
In other words,cold chain monitoring devices is the systematic and controlled process of temperature maintenance of refrigerated goods and products throughout the entire supply chain, from production to storage, transportation, and distribution.
This process involves the use of remote temperature monitoring devices, data collection systems, and analytical tools to ensure certain temperature conditions are maintained at every phase of the supply chain.
So, how does the cold chain temperature monitoring process work?
Cold chain monitoring devices relies on a network of temperature monitoring devices Set on cargo or the respective carrying assets such as reefer containers/trucks. These devices can remotely monitor the temp while the shipment is in transit or stored away. This enables keeping an accurate record of the temp of the shipment.
The cold chain monitoring devices can actively/passively monitor temp suiting to single and multi-use cases, which involves live recording and transmission of analytics of a centralised server as well as passively storing the data over the device’s storage memory itself.
This system then processes the data, compares it with predefined thresholds and regulations, and provides real-time alerts if any deviations are detected. This proactive monitoring approach allows for quick identification and rectification of issues.
When is Cold Chain Temperature Monitoring Used?
Cold chain temperature monitoring is used throughout the three segments of the supply chain in which temperature monitoring is required. Each segment needs a specific adaptation of temperature monitoring.
The first segment is process monitoring. This tier of monitoring occurs in manufacturing, processing, and pre-transit handling. Some pharmaceuticals, such as insulin and other biologics, require temperature monitoring during manufacturing and processing. Cold chain temperature monitoring is beneficial during this segment because it enables detection of deviations prior to the product reaching the shipping stage.
The second segment is shipping and transport monitoring. This segment is likely where most people associate the use of cold chain monitoring systems. During this segment, temperature monitoring devices are used inside shipping containers or in reefer trucks. During this segment, temperature monitoring devices are used to monitor temperature during the transportation of goods to different cities, states, or countries.
The last segment is storage monitoring. When goods are placed in a warehouse, cold rooms or during retail cold storage, temperature monitoring continues. Cold chain monitoring system
Remote Temperature Monitoring Has options Even Without WiFi
For many businesses working in warehouses, farms, and cold storage vehicles, connectivity remains a challenge as many locations do not have reliable WiFi. Luckily, remote temperature monitoring will work without WiFi.
- Cellular Sensors – Many cellular sensors use SIM cards to send data over mobile networks, and many people would compare this to a way to send data with a phone. They are great for cold storage units or reefer trucks that are in remote locations.
- LoRa and LoRaWAN – LoRa (meaning Long Range) is a wireless protocol that uses very little battery to provide a sensor network over a large area. It would fit farm sensors and warehouse sensors that are farther spread.
- Bluetooth Sensors – Great for smaller groups of sensors that connect to a phone or another device over a short distance. This is useful for things like cold rooms, small lab, and storage where a centralized WiFi is not as important.
- Satellite Monitoring – For complete remote locations, like transported cold chain or storage, even satellite networks can work to send data out to areas where neither WiFi nor cell-based networks reach.
- Zigbee/Z-Wav Mesh Networks – Great way to connect a lot of sensors over a large area that doesn’t have WiFi at all of the areas.
The choice between the two technologies depends on your location, construction budget, and how crucial real-time alerts are for your operations. Of the two technologies most suitable for the Indian cold chain, last-mile delivery, and rural cold chain storage, cellular and LoRa wireless temperature monitoring devices are the most reliable and cost efficient.
Important Parts of a Cold Chain Monitoring System
A reliable cold chain temperature monitoring device is rarely a standalone solution. Breaking down the individual components of a system tells you whether all other components of a system are built or all the important pieces are missing.
Temperature Sensors—the core measurement component, offered as data loggers, wireless sensors, or probe thermometers depending on the application.
Environmental & Door Alarms— alert teams of open door conditions or when the ambient conditions are drifting, both of which can cause temperature excursions.
Real Time In-Transit Alerts— notify logistics managers or quality personnel when a threshold is violated while in transit, allowing time to intervene before goods are potentially spoiled.
Dashboards & Reporting— a tool to display real time temperature data and historic data for decision support.
Corrective Action Protocols— define actions staff will take in the event of a deviation, from a predefined list to avoid and eliminate the “fire drill” response.
Audit Trail— a defensible, time stamped record of the temperatures and corrective actions to comply with record retention requirements, which is critical for certain industries like pharmaceuticals where records may be retained for many years.
Our remote temperature monitoring solution is designed to address and integrate all the above components, eliminating the need for the client to integrate multiple tools.
Benefits of Remote Temperature Monitoring
Enhanced Safety and Compliance
Dairy and vaccines are both examples of perishable items which can spoil when temperatures are not monitored and/or controlled properly. Continuous temperature monitoring helps decrease the potential public health and safety risks of spoiled perishable items and allows you to be prepared for audits.
Decreased Cost and Decreased Spoilage
Spoilage and the loss of goods can drive up a company’s costs. Remote temperature monitoring provides real-time alerts, meaning you can mitigate spoilage and equipment damage caused by unsafe temperatures within hours instead of after the fact.
Immediate, Real-Time Alerts
An incredible feature of remote temperature monitoring systems is the ability to alert you the moment the device(s) on your perishable goods goes out of optimal temperature limits. This feature saves you the hassle of finding out (sometimes hours later) during your routine temperature checks that your perishable goods have spoiled, and allows you to take corrective action immediately.
Trustworthy Audit Evidence
Continuous temperature monitoring systems log every temperature reading, and as a result, create a system of record of every reading that a company or organization can provide to comply with an audit request rather than relying on individuals to manually maintain a log.
Improved Process Flow
Management is able to check on the status of multiple shipping vehicles quickly, as well as eliminate the need for staff to perform temperature monitoring runs.

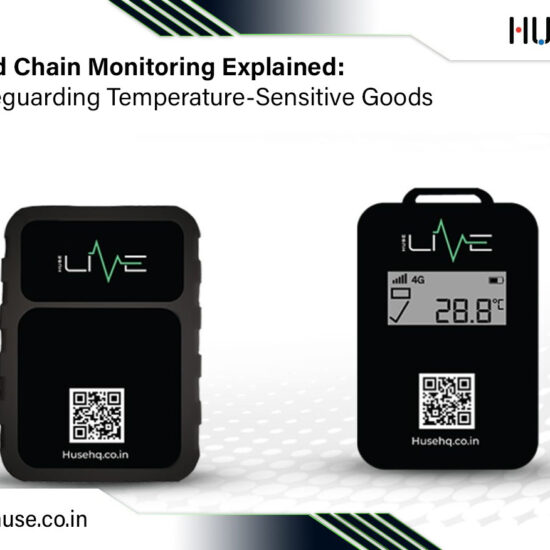

Remote temperature monitoring Devices
Several types of cold chain temperature monitoring devices are used throughout the supply chain. The devices are picked depending on the use case and product of the supply chain. The main categories of temperature monitoring devices are:
1.Data Loggers: Data loggers are conventional cold chain temperature monitoring devices that form the most commonly used type of sensors. These types of monitoring devices record temperature readings at a regular interval during transportation or storage. They passively store the data over the device and are most likely non-programmable devices.
2.Wireless Temperature Sensors: These types of monitoring devices usually transmit real-time data using wireless communication technology using GSM, LTE or WiFi module. These sensors enable access to real time temperature information from disparate locations instantaneously.
3.Probe Thermometers: Probe thermometers are equipped with temperature sensors and displays. They enable the user to insert the probe directly into the product environment to gain an accurate reading of temperature conditions.
Industries That Use Remote Temperature Monitoring
Pharmaceuticals & Vaccines
Vaccines and biologics have specific temperature requirements for storage, and thus manufacturing and transport must also adhere to the cold chain guidelines within pharmaceuticals. Remote temperature monitoring helps manufacturers and shippers adhere to cold chain guidelines to maintain integrity of the product throughout the supply chain and last-mile delivery.
Food & Beverage
From cold storage warehouses to restaurant walk-in refrigerators, temperature monitoring helps food and beverage businesses maintain food safety and prevents losses caused by spoilage.
Data Centers & Server Rooms
Overheating servers results in costly downtime for a business. Remote sensors alert IT teams in the case that temperature ranges go out of safe operating limits.
Agriculture & Warehousing
Grain and produce are sensitive to temperature and humidity, and remote temperature sensors protect these items. Large storage facilities and farms rely on LoRa-based systems because of the large areas needing to be covered with temperature sensing systems.
Healthcare & Laboratories
Labs that store medical supplies, reagents or samples must adhere to the regulatory requirements for temperature control to ensure sample integrity.
Regulatory Compliance and Remote Temperature Monitoring
In the pharma, food, and healthcare industries, the primary driver of Remote Temperature Monitoring (RTM) deployments is a concern for regulatory compliance.
HACCP (Hazard Analysis Critical Control Points): A documented temperature control process in a food safety system at critical points of the supply chain
FDA 21 CFR Part 11 (US): Involves controls of Electronic Records, and makes it obligatory on the part of companies exporting to the US that Temperature Data systems be authentic, encrypted, and traceable
GxP Standards: Is a set of good quality practices (Good Manufacturing/Distribution/Laboratory Practice) in the pharma and biotech industries, requiring audit-archiving temperature monitoring systems of validated systems
FSSAI Guidelines (India): Temperature controls and record maintaining mandates by the Food Safety and Standards Authority of India on food businesses dealing in perishable goods make Indian F&B operators follow these guidelines
CDSCO Cold Chain Guidelines (India): The Central Drugs Standard Control Organisation in India defines the cold chain requirements for the storage and transport of pharmaceuticals and vaccines in the country, and remote temperature monitoring systems fulfill these requirements.
An automatic remote monitoring system significantly reduces the time required for audits and the number of errors when compared to manual logbooks.
Why Cold Chain Temperature Monitoring Is an Investment
- Remote temperature monitors are not just about staying legal – they offer measurable business value:
- Preventing loss through spoilage – shipments are not sent to customers if the monitor detects a deviation.
- Documented audit trails decrease the chances of a costly recall or citation during inspections.
- Trust among customers and partnering companies is attained by a consistent ability to deliver products that meet specifications.
- Continuous remote monitoring allows inefficient cooling cycles to be identified.
- The value that these benefits provide make cold chain temperature monitoring worthwhile.
Connectivity & Build Options in Current Temperature Monitoring Devices
Modern tools for temperature monitoring along the cold chain have multiple options for connectivity and power, making for complicated choices before deciding on a vendor.
- Connectivity: Today’s devices use GSM, 4G, and 5G, as well as LTE-M and Wi-Fi. Cellular connectivity is preferred for transport of goods across borders since it depends on the cell phone network instead of a fixed connection.
- Power options: wearables can be battery powered, solar powered, or vehicle powered, and often include a backup battery.
- Build rating: at a minimum, cold chain devices should have an IP67 rating or an equivalent to withstand moisture, vibrations, temperature changes, and other conditions present in transport in a reefer container or an enclosed vehicle.
Also Read: Working of Cold Chain Data Loggers & Temp Loggers
Regulatory & Compliance Standards for Cold Chain Monitoring
For many companies in the pharmaceutical, food, and life-sciences sectors, a cold chain temperature monitoring system is a regulatory compliance requirement, more so than an operational tool.
Good Distribution Practice (GDP) prescribes the minimum standards for the quality and integrity of medicines while they are being sourced, stored, and transported. In the US, various FDA regulations specifically relate to temperature controlled distribution and include requirements for storage, handling, and the record keeping of drug samples. Internationally, the ICH guidelines on stability testing help to define the validated temperature and humidity conditions for a product.
A widely used reference for storage condition definitions comes from the US Pharmacopeia (USP):
| Condition | Temperature Range |
|---|---|
|
Freezer |
-80°C to +150°C (varies by sensor type) |
|
Refrigerator |
2°C to 8°C |
|
Cool |
8°C to 15°C |
|
Controlled Room Temperature |
20°C to 25°C (brief excursions to 15–30°C permitted) |
|
Warm |
30°C to 40°C |
|
Excessive Heat |
Above 40°C |
Compliance generally rests on three pillars: the storage/transport area must be qualified for its intended use, temperature must be continuously monitored, and monitoring devices must be regularly calibrated. A good cold chain monitoring device should make it straightforward to demonstrate all three to an auditor.
Typical Remote Temperature Monitoring Specs
| Feature | Typical Range |
|---|---|
|
Temperature Range |
-80°C to +150°C (varies by sensor type) |
|
Wireless Range |
Up to 300–600m (line of sight varies by protocol) |
|
Battery Life |
1–10 years depending on reporting frequency |
|
Alert Methods |
SMS, Email, App Push, Phone Call |
|
Data Storage |
Cloud-based + onboard memory (up to 50k+ readings) |
|
Connectivity Options |
WiFi, GSM/4G, LoRa, Bluetooth, Satellite |
Choosing The Right Cold Chain Monitoring Partner: A Checklist
Choosing a cold chain monitoring devices supplier is not only about the hardware, it is about the system and the support behind it. Before you make a final decision about a supplier, assess them along the lines outlined below:
Real-Time vs. Passive Data Access – Does the device solely record data that is downloaded at a later time or does the device record data and allow you to see deviations in a real-time basis? For expensive or highly sensitive shipments, patronage of a service that provides real-time remote temperature monitoring is justified.
Package-Level Monitoring – Can the device monitor a single pack of frozen food as opposed to just a container or a vehicle? Within a container, temperature hot spots occur at the package level and are usually missed when monitoring at the container level.
Connectivity Reliability – Insulated containers, and especially international shipping/distribution can lose cellular connectivity. Indicated providers offer either BLE, RFID, or a combination of the two to give connectivity on cross country shipping routes.
Analytics (over Data) – Providing a large amount of data that is useless is not a good service. A substantial service provides a layer of analytics that filters data and focuses on the important patterns of risk.
Ease of Use – The best cold chain temperature monitoring devices are the ones that your team will use consistently. Overly complex dashboards or manual data pulls usually result in decreased adoption and compliance over time.
Reusability and Total Cost of Ownership – Although single use temperature loggers are less expensive, utilizing a reusable temperature logging device with a take back (recycling) or a refurbishment program is generally more cost effective.
Build vs. outsource — Most businesses will incur more disruption and cost by building a monitoring solution in-house than they would by utilizing a cold chain monitoring devices partner with an established infrastructure and support.
International/regulatory experience — A good partner will have experience in international regulatory compliance, not just domestic regulatory compliance.
Incident response support — What do they offer when the proverbial shit hits the fan? A good partner will offer more than a device and a dashboard.
Scalability — A good partner will scale to meet your business needs.
We work with clients along these lines to determine the best solution – from what devices and systems will fit your needs, to how to deploy them in a way that ensures your business goals are met. [Contact our team] to discuss how we can help you.
FAQ on Cold Chain Temperature Monitoring Devices & Remote Temperature Monitoring
What is a remote temperature monitoring device used in cold chain?
Cold chain temperature monitoring devices are advanced IoT based equipment used to track, monitor and record the temperature of the cold chain storage containers throughout the entire supply chain. Remote temperature monitoring devices such as data loggers or real-time sensors, allow businesses to store and transport temperature-sensitive goods, ensuring minimal wastage or goods.
These devices stores and transmits the data to a centralised system which can later be used to compare it with predefined numbers for quick identification and adressal of deviations and rectification of issues.
What are the different types of cold chain monitoring devices?
Cold chain monitoring devices serve a crucial purpose in cold chain management and remote temperature monitoring in supply chain operations. Common types include thermocouples, Resistance Temperature Detectors, (RTDs), Thermistors, Infrared sensors, data loggers, wireless sensors, probe thermometers, and more. Data logger devices record temperature data over a period of time, which makes a go-to choice for cold chain monitoring devices. Each device offers unique advantages for specific needs, thus ensuring optimal temperature management and compliance with rigorous safety standards.
What is the purpose of a cold chain temperature monitoring devices?
Temperature monitoring is the process that includes measuring and recording the temperature of a given environment or process with the goal of keeping its temperature in control. Cold chain temperature monitoring devices is used in a huge range of applications across food and beverage industries, pharmaceuticals, FMCG , HVAC, petrochemical and more. The main purpose of the temperature monitoring process is to ensure that temperatures are maintained within a specified range, allowing for early detection of any deviations and necessary corrective measures, if necessary.
What are the components of a remote temperature monitoring?
Over the past few decades, food, chemical, medical,and life science industries have seen the increasing use of electronic and cold chain monitoring devices to safeguard their products and goods and comply with regulatory standards. When selecting a temperature monitoring system consider the following critical components like Temperature Probe or Sensor, Temperature Measurement Device, Thermal Buffer, Data Storage, Software and Alarming functions. With the right understanding of the different parts of a temperature monitoring system, you can make an informed decision. For more detailed information, please feel free to contact our experts.
What is the most important tool to cold chain temperature monitoring devices?
The most important tool to monitor temperature is a comprehensive cold chain temperature monitoring devices. This system includes sensors, data loggers, and cloud-based platforms. These systems ensure real-time data collection and analysis, critical for maintaining optimal conditions in sensitive environments. Particularly in cold chain temperature monitoring devices, these systems provide alerts and historical data, ensuring compliance with safety standards and preventing product spoilage.
How does remote temperature monitoring work without WiFi?
Devices can use cellular (GSM/4G), LoRa/LoRaWAN, Bluetooth, or satellite communications instead of WiFi. Therefore, remote and low connectivity locations such as cold storage or vehicles in transit are candidate sites for remote temperature monitoring.
Can I monitor temperature remotely from my mobile phone?
Yes. Most modern temperature monitoring systems are designed to provide real time monitoring to users with a mobile app or a mobile browser optimized interface.
Is remote temperature monitoring enough, or do I still need manual checks?
While remote monitoring mitigates the majority of the risk and burden of the check, it is advised that a thorough manual check routine is implemented to provide assurance of compliance and to assure that sensors have not been tampered with.
What compliance standards does remote temperature monitoring help satisfy?
It may help satisfy standards including FDA 21 CFR Part 11, HACCP, and GxP, and for businesses in India, the FSSAI and CDSCO cold chain guidelines..
What should I consider when selecting a remote temperature monitoring device?
Accuracy of the sensor, wireless range, battery life, data storage and operational methods, certification of compliance, and cost should be considered.
What is the difference between real-time cold chain monitoring and data logging?
Data loggers are read after the shipment is completed. They will log temperature enthusiastically to either preexisting memory, or continuously store temperature data at certain intervals. Real-time monitoring devices continuously send data to a system to be viewed real-time. This allows issues to be resolved before the shipment is completed.
What temperature range is used to store and transport pharmaceuticals?
This depends on the pharmaceutical, but usually ranges are defined by the USP and include 2-8°C for cold and 20-25°C for controlled room temperature with excursions allowed. Always check the stability data for the relevant pharmaceutical.
What regulations discuss cold chain temperature monitoring?
Good Distribution Practice (GDP) and the FDA 21 CFR regulations describe this in the United States, and internationally the ICH Stability Testing guidelines describe this frame of reference. Usually, compliance is achieved by having a qualified storage space, and continually monitoring and calibrating the equipment.
How does cold chain monitoring help with sustainability and waste reduction?
By monitoring shipments, issues that cause product spoilage can be resolved before spoilage occurs. Foster a reduction of wasted shipping inventory. Redundant cooling causes energy to be wasted. Analyzing log data reduces wasteful energy use.
What connectivity options are in cold chain devices?
Most cold chain devices use GSM/4G/5G for real-time international shipping, other devices use Wi-Fi for real-time shipping in local areas.
How do I choose between a data logger, wireless sensor, and probe thermometer?
Data loggers are the most economical choice when continuous monitoring isn’t necessary. Shipments that require real-time temperature alerts should be outfitted with wireless temperature sensors. Probe thermometers are best used to verify temperature control at shipping end-points (i.e. loading docks).
Which sectors do you think are the largest users of cold chain temperature monitoring?
Pharmaceuticals and food & beverage are the largest groups, followed by agriculture, floriculture and cold storage and retail in the FMCG sector.
What is cold chain monitoring?
Cold chain monitoring involves tracking the temperature of all materials during each stage of the supply chain from the time of manufacture to the time of delivery. Each dose is at risk of losing its potency if the temperature rises above the acceptable range. Therefore, monitoring devices for such temperatures need accuracy and an impenetrable audit trail in order to protect the patient and to ensure compliance with regulations.
What is cold chain temperature monitoring?
Cold chain temperature monitoring controls the temperature of perishable goods in storage, transport and while being handled to prevent spoilage and to eliminate the risk of food poisoning. Devices used in the food chain prioritize temperature monitoring with real time alert systems.
Real-time monitoring vs. Data recorders?
Data recorders take temperature readings but do not transmit the data in real time. Therefore, real time monitoring with data transmission is required for high risk shipments in order to provide early interventions.
Many businesses employ combinations of both.
Are cold chain monitoring devices reusable?
Many modern cold chain temperature monitoring devices are designed for multi-use, and some providers even offer take-back or refurbishment programs. Despite a higher initial cost, reusable devices can decrease total cost of ownership for businesses with an abundance of repetitive shipments.
